Description
Overview

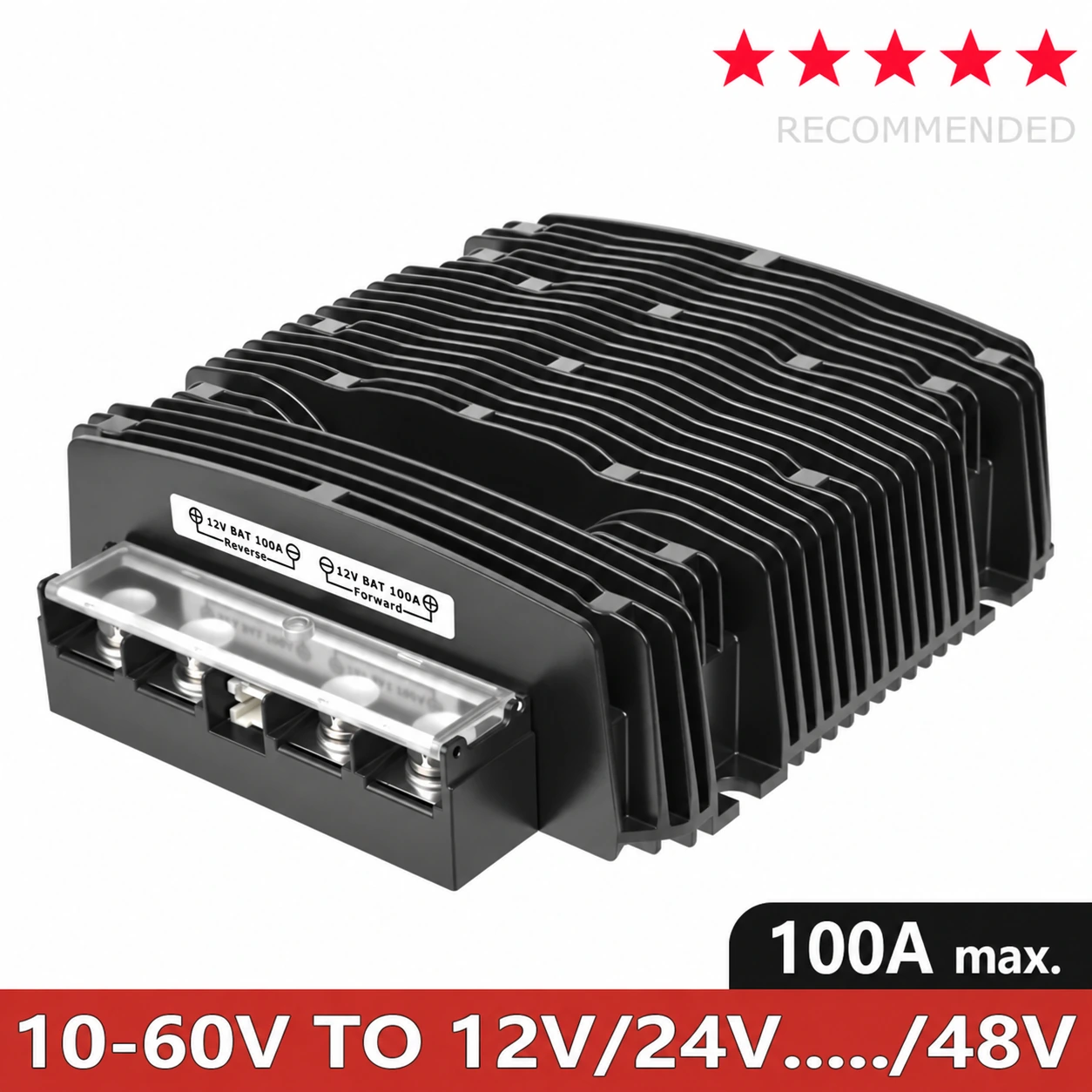

This DC–DC converter delivers an output of 12 V, 24 V, 28 V, 36 V or 48 V from an input of 10–60 V DC. This listing contains 11 models with output currents of 20–100 A.
Every value below is stated by the supplier for that exact model and has not been independently tested by PVShop. Choose a model above to see its full specifications and download its datasheet. Price and availability depend on your delivery country; the selector above shows the models available for it.
All 11 models in this listing
| Model | Input voltage | Output voltage | Output current | Output power |
|---|---|---|---|---|
| PVS-000558 | 10–60 V DC | 12 V | 80 A | ≈ 960 W |
| PVS-000560 | 10–60 V DC | 12 V | 100 A | ≈ 1200 W |
| PVS-000559 | 10–60 V DC | 24 V | 40 A | ≈ 960 W |
| PVS-000555 | 10–60 V DC | 24 V | 50 A | ≈ 1200 W |
| PVS-000554 | 10–60 V DC | 24 V | 60 A | ≈ 1440 W |
| PVS-000557 | 10–60 V DC | 28 V | 40 A | ≈ 1120 W |
| PVS-000556 | 10–60 V DC | 28 V | 50 A | ≈ 1400 W |
| PVS-000562 | 10–60 V DC | 36 V | 30 A | ≈ 1080 W |
| PVS-000561 | 10–60 V DC | 36 V | 40 A | ≈ 1440 W |
| PVS-000564 | 10–60 V DC | 48 V | 20 A | ≈ 960 W |
| PVS-000563 | 10–60 V DC | 48 V | 30 A | ≈ 1440 W |
≈ Calculated from output voltage × current; not a separate power rating.
Choosing the right model
- Choose a model whose input range covers the lowest and the highest voltage of your supply, including while it is charging: a nominal 12 V battery system can exceed 14 V.
- Keep your continuous load comfortably below the rated output current of the model you choose.
- Size the cables and fuses on each side for the current on that side, and fit the input fuse close to the battery.
- Each model has its own PVShop datasheet. It appears with the full specifications when you select the model above.
