WattCycle 24V 100Ah LiFePO4 Battery

469.99

24 V · 100 Ah · 2.56 kWh · LiFePO4

ModelPVS-BAT-4A83598619

parallel-series

Nominal system voltage
24 V
Rated capacity
100 Ah
Rated energy
2560 Wh
Cell chemistry
LiFePO4
Download model datasheet (opens in a new tab)
SKU: PVS-BAT-4A83598619 Category:

Description

  • Voltage: 24
  • Capacity Ah: 100
  • Energy Kwh: 2.56
  • Chemistry: LiFePO4
  • Bluetooth: no
  • Heated: no
  • Low Temp Cutoff: yes
  • Bms Amps: 100
  • Cycles: 15000
  • Certifications:
  • Dimensions Mm: 482 × 241 × 170

Battery management and configuration

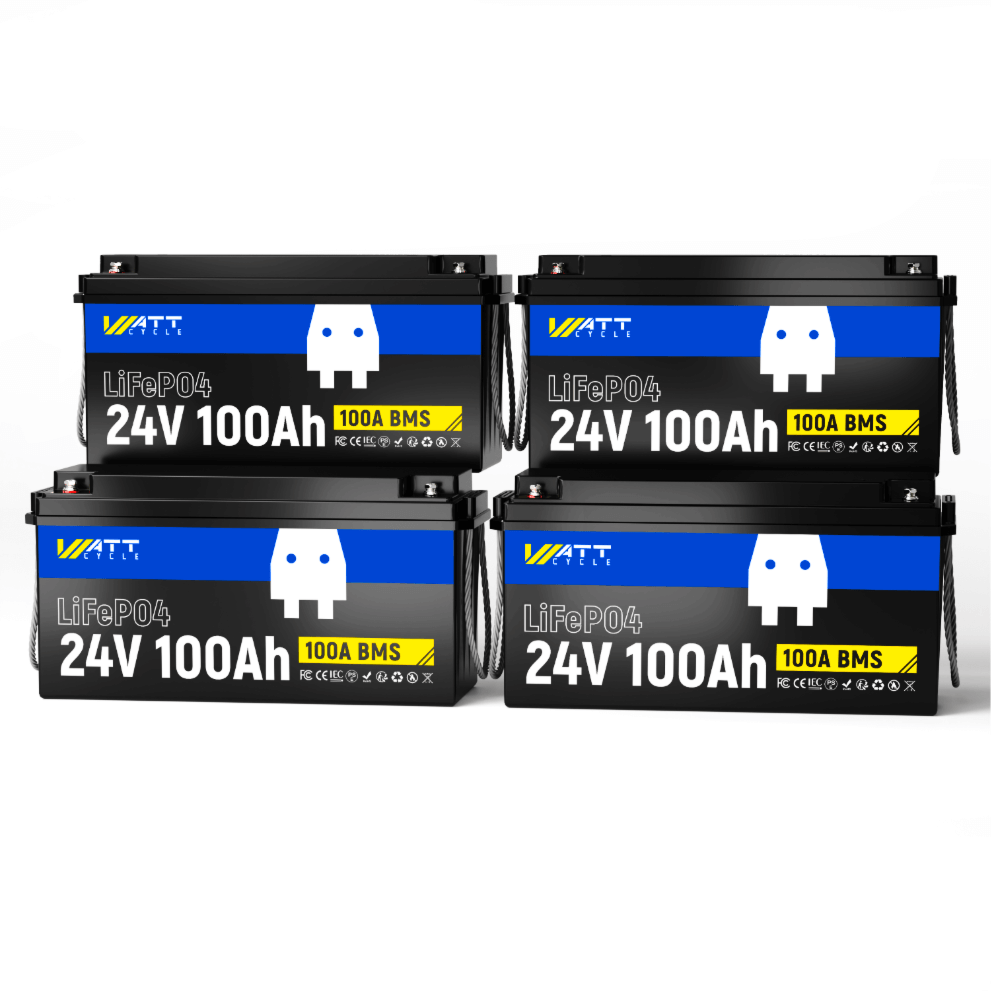

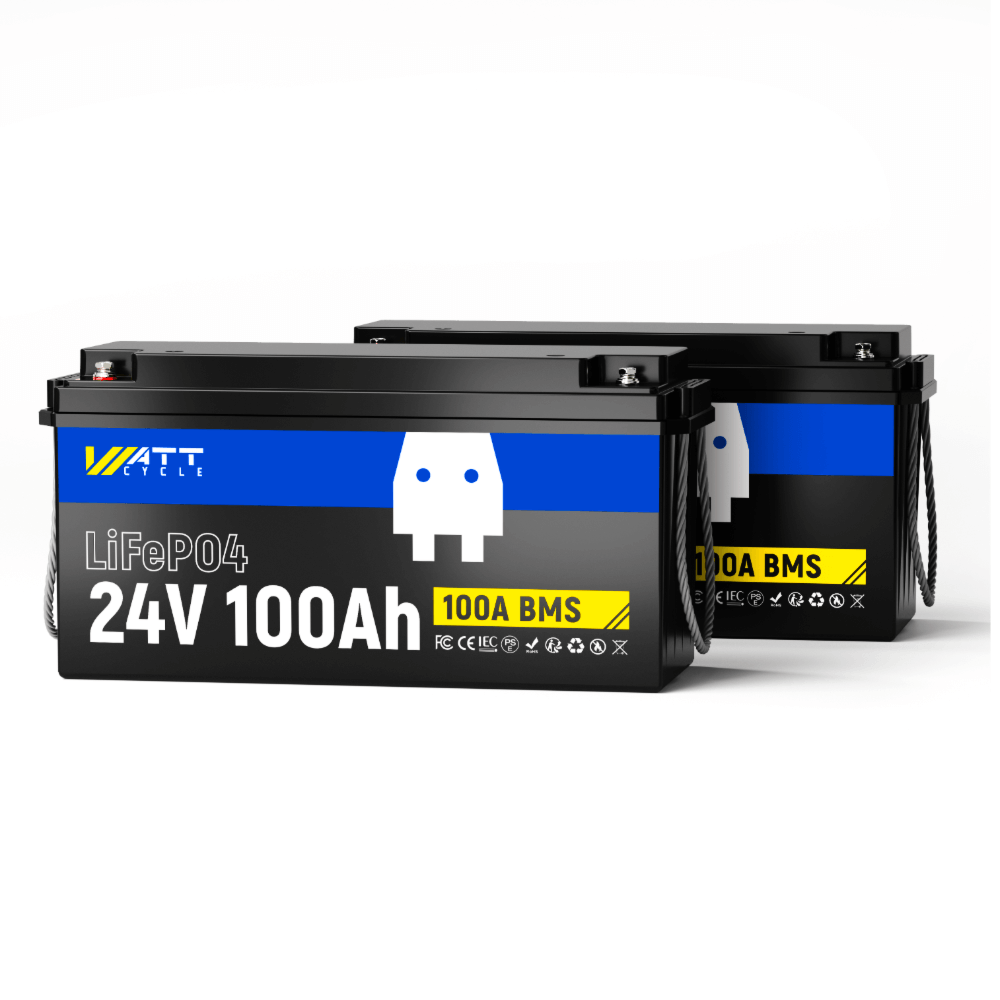

  • Configuration: up to 4 in parallel and up to 2 in series
  • Battery management system: 100 A battery management system (BMS), stated by the manufacturer for this model

Figures stated by the manufacturer for this model. A rating is shown only where the manufacturer publishes it.

Delivery time and shipping cost are shown for your country before you order.

Technical specifications

Unverified — information not checked

Selected model specifications

ModelPVS-BAT-4A83598619
Our datasheetDownload PDF (opens in a new tab)
System
Model configurationparallel-series
Battery & BMS
Rated capacity100 Ah
Rated energy2560 Wh
Cell chemistryLiFePO4
BMS continuous current rating100 A

Documentation & test conditions
