Description
Overview

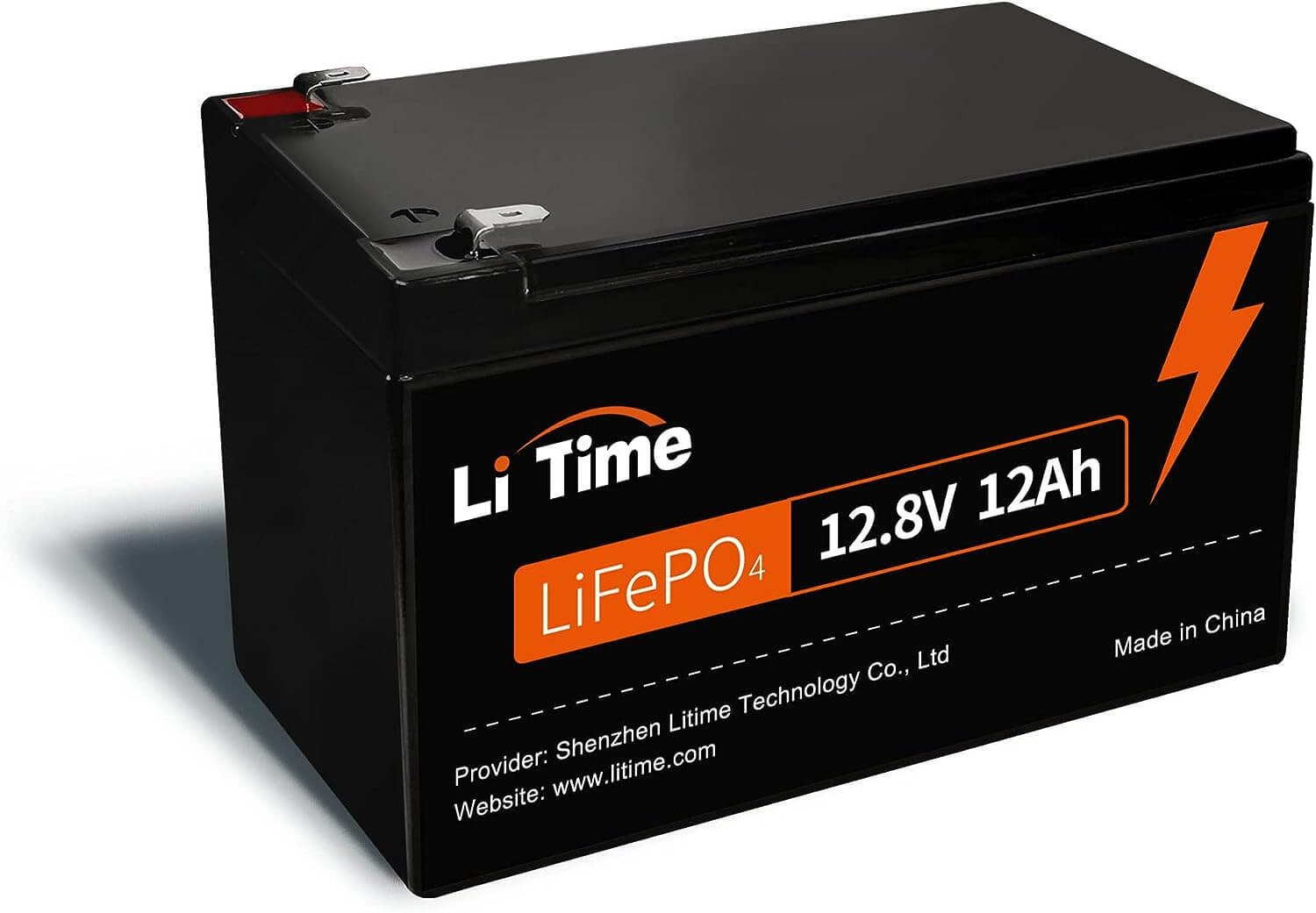

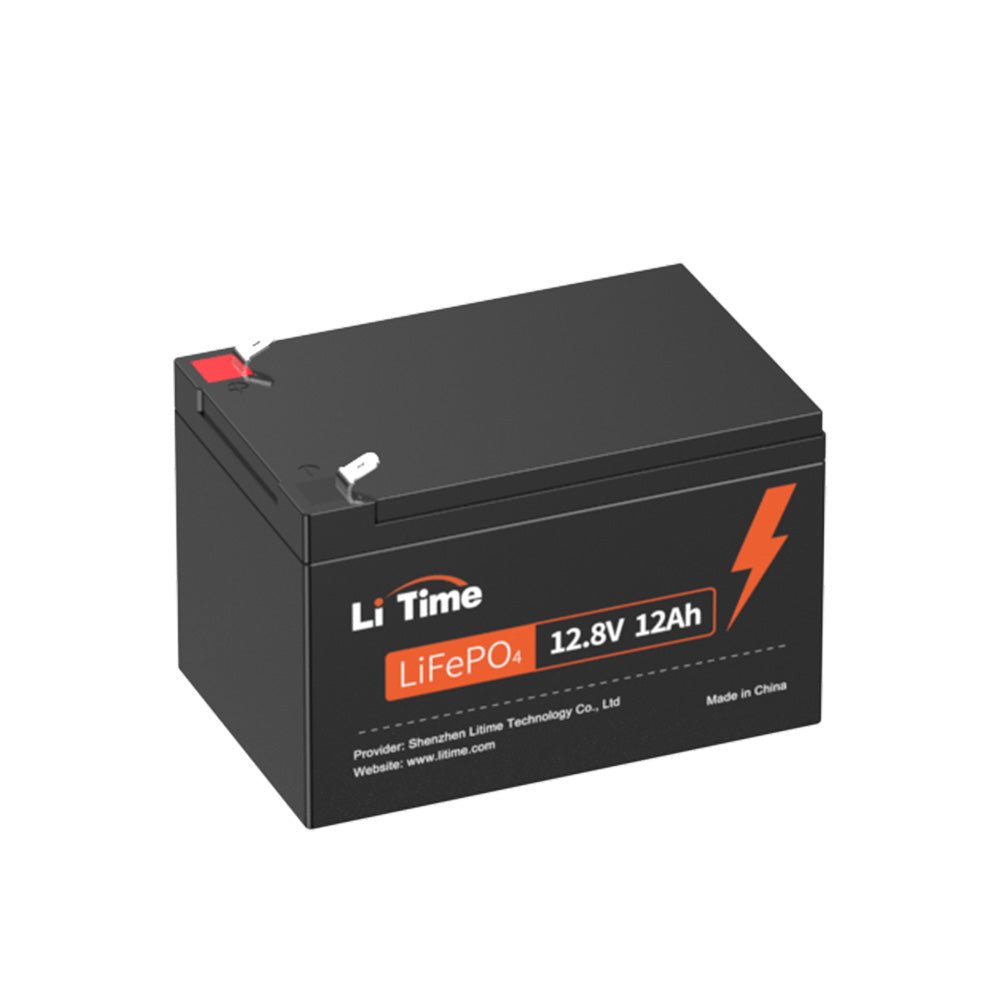

This LiTime battery has a rated capacity of 12 Ah at 12.8 V nominal voltage. Its rated energy is 153.6 Wh. It uses LiFePO4 cells.
Features
- Cycle life stated by the manufacturer: 4,000 cycles.
- Ingress protection IP65: dust-tight and protected against water jets.
Runtime and charging
- At a steady 100 W load, the rated energy lasts about 1.5 h. An inverter and the cabling add losses, so plan with a margin.
- Continuous discharge: up to 12 A, about 154 W at nominal voltage. Keep inverters and other loads below this.
- Short peaks of up to 75 A are allowed for 1 s, for example while a motor or an inverter starts.
- At the recommended charge current of 2.4 A, charging from empty takes roughly 5 h.
Installation
- Fit a fuse or circuit breaker close to the positive terminal and size the cables for 12 A of continuous current.
- Charge it at 14.4 V with a LiFePO4-compatible charger. For mains power see AC–DC battery chargers; for charging from a vehicle alternator see DC–DC battery chargers.
- It is a deep-cycle battery: do not use it to start an engine unless the manufacturer rates this model for starting.
These figures are stated by the manufacturer, were checked by PVShop on 2026-09-12 and have not been independently tested. Delivery time and shipping cost are shown for your country before you order.
