Description
Overview

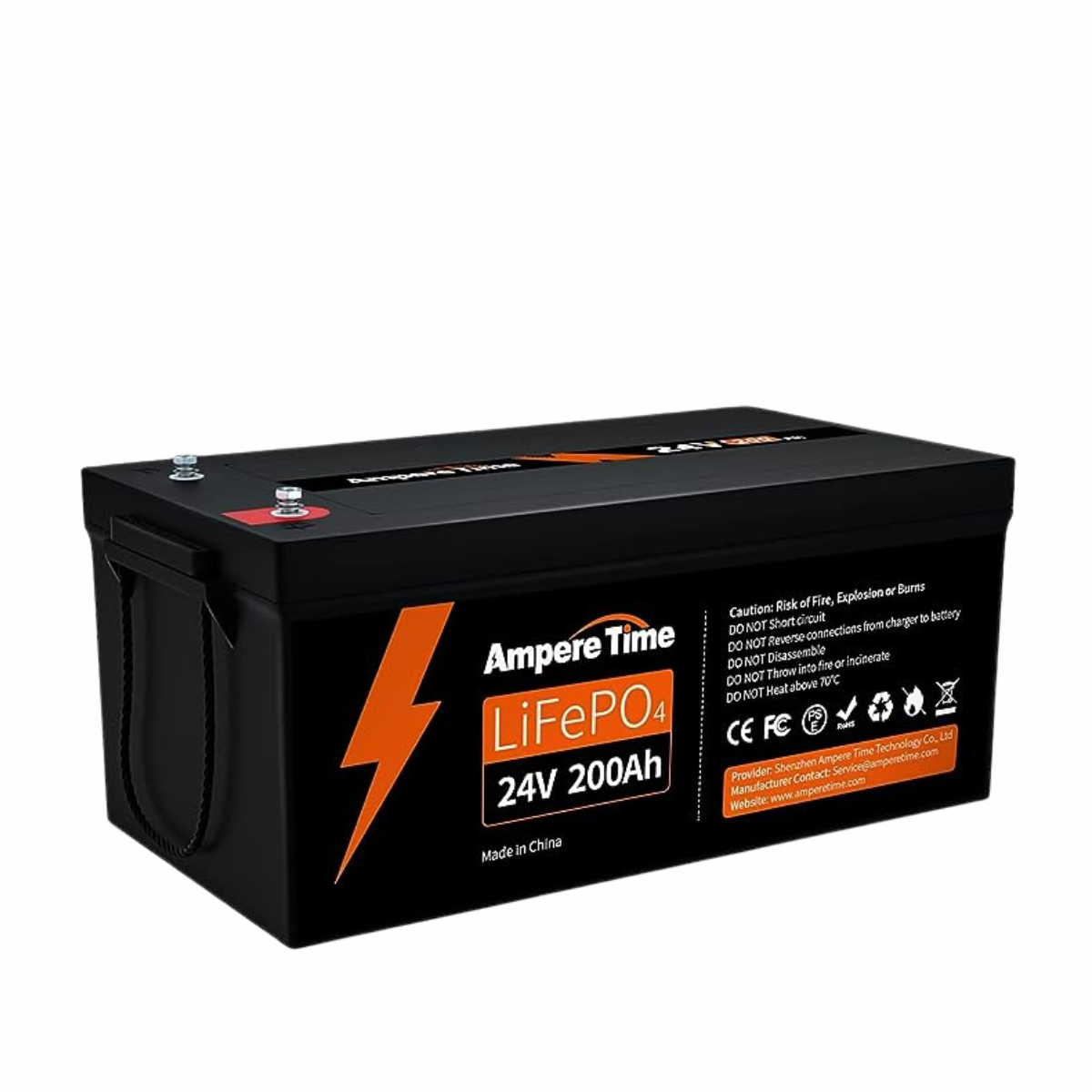

This Ampere Time battery has a rated capacity of 200 Ah at 24 V nominal voltage. Its rated energy is 5120 Wh. It uses LiFePO4 cells.
Runtime and charging

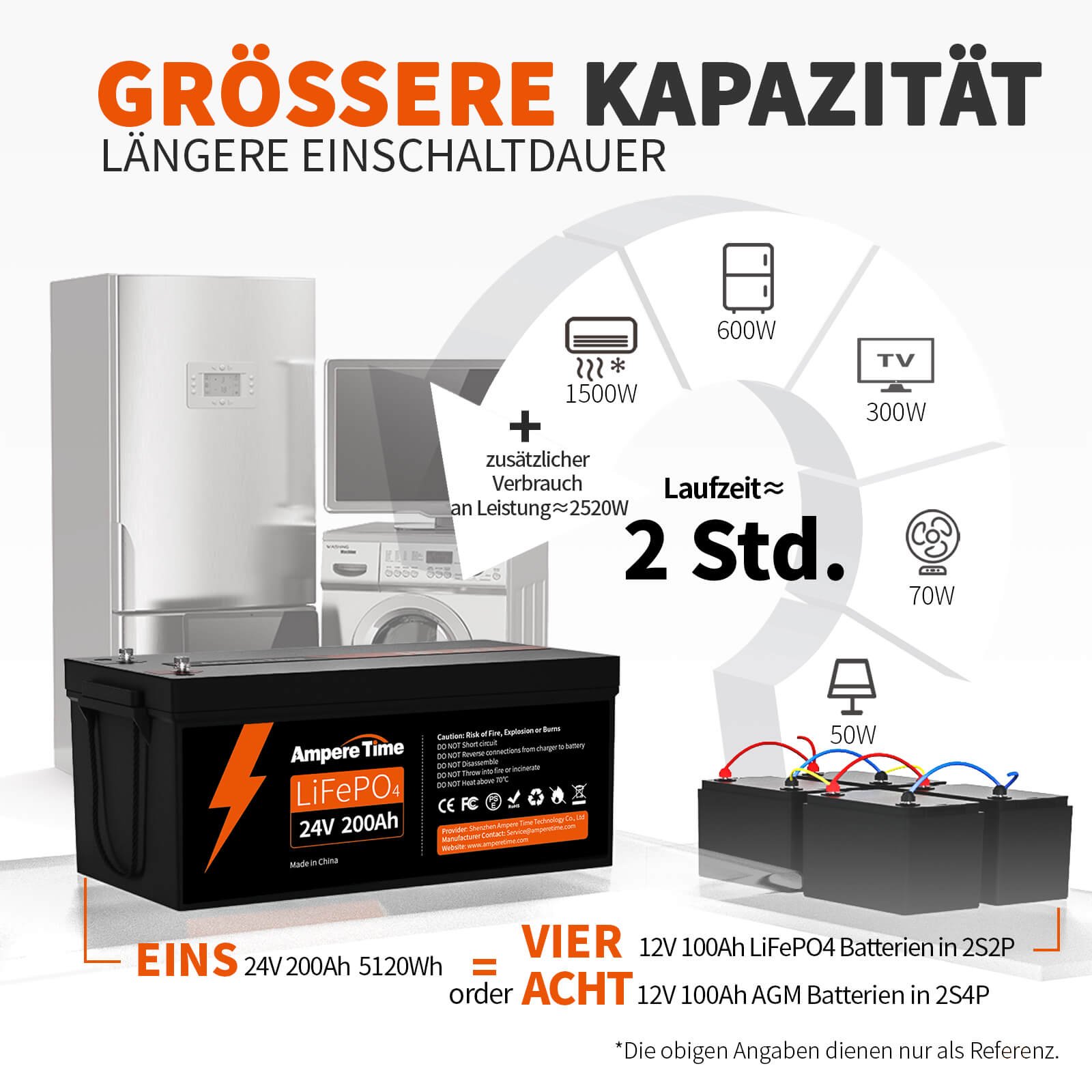

- At a steady 500 W load, the rated energy lasts about 10 h. An inverter and the cabling add losses, so plan with a margin.
- Continuous discharge: up to 200 A, about 4800 W at nominal voltage. Keep inverters and other loads below this.
Installation
- Fit a fuse or circuit breaker close to the positive terminal and size the cables for 200 A of continuous current.

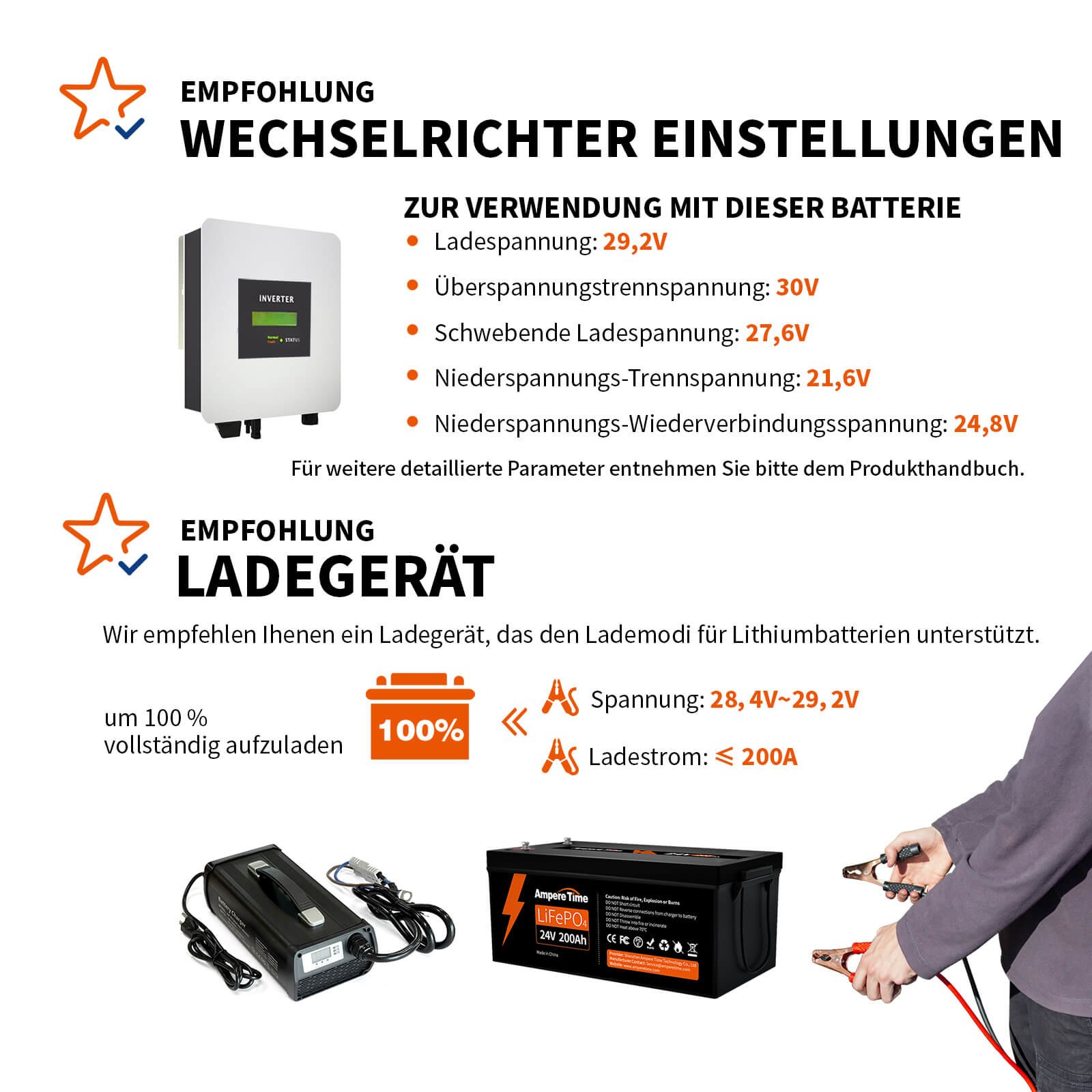

- Charge it with a LiFePO4-compatible charger at the voltage the manufacturer specifies. For mains power see AC–DC battery chargers; for charging from a vehicle alternator see DC–DC battery chargers.
- It is a deep-cycle battery: do not use it to start an engine unless the manufacturer rates this model for starting.
These figures are stated by the manufacturer, were checked by PVShop on 2026-09-12 and have not been independently tested. Delivery time and shipping cost are shown for your country before you order.
